Heatmiser ufh 8 wiring diagram. Up to 8 zones can be controlled from the uh8. No l l n n zone 2 l l n n zone 1 time clock zone 1 zone 2. The uh8 is an 8 way wiring centre suited to accept 230v thermostats and thermal actuators. 8 zones can be controlled as well as providing an output for a hot water cylinder.

If set to no, zone 8 is isolated. The uh8 is an 8 zone wiring centre for use with heatmiser 230v thermostats. Heatmiser underfloor heating wiring diagram. Heatmiser underfloor heating wiring diagram.

Installing the 230v 8 zone wiring centre. Ufh 230v ufh 230v ufh 230v ufh l e n l e n l e n l e n rads power pump 4 8 3 7 2 6 1 5 hot water this equipment should be installed by an appropriately quali˜ed / registered electrician. Works with our 12v thermostats. Central wiring to up to 8 zone actuators.

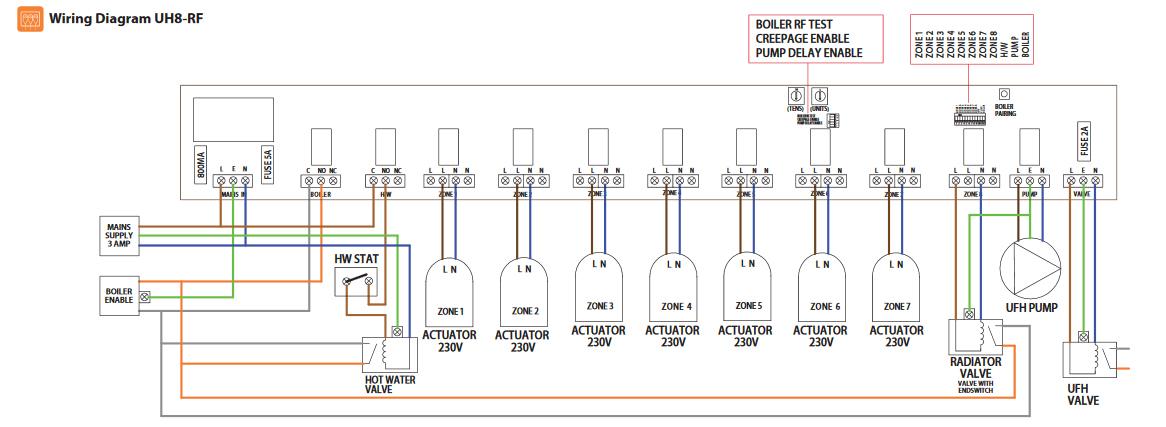

Need help wiring underfloor heating express blog heatmiser uh4 s plan central system combination boiler with 2 zones diagram and instruction manual user install manuals uponor rf switch wireless receiver myson brochure technical mat installation ufh to manifold tado need help wiring underfloor heating diynot forums underfloor heating express blog wiring. Heatmiser underfloor heating wiring diagram. The uh8 is an 8 zone wiring centre for use with heatmiser 230v thermostats. The heatmiser uh8 can be used in conjunction with our mains thermostats.

At the same time the uh8 offers the ability to operate a boiler or other heat source through a volt free output. Heatmiser underfloor heating wiring diagram. When used for underfloor heating, an option is available to use zone 8 as a conventional radiator zone. If the endswitch is not being used put a link between gr and or 230v actuator up to 4 per zone if this switch is set to yes, zone 8 enables the boiler, pump and valve.

An ideal solution for larger underfloor heating systems, the heatmiser uh8 8 zone wiring centre offers connections for up to eight thermostats for separate control of 8 rooms. 4200 inc vat add to basket. The heatmiser uh8 underfloor heating wiring centre is designed to work with our 4 channel 230v time clock tm4 and 230v set. An ideal solution for larger underfloor heating systems the heatmiser uh8 8 zone wiring centre offers connections for up to eight thermostats for separate control of 8 rooms.

An ideal solution for larger underfloor heating systems, the heatmiser uh8 8 zone wiring centre offers connections for up to eight thermostats for separate control of 8 rooms. The 230v 8 zone wiring centre has been designed to be a complete wiring solution for underfloor heating, radiators, and hot water control. 4200 inc vat add to basket. Fully read the instructions for proper wiring before applying power.

It will have outputs for the ufh pump etc etc. Can be used with 230v thermostats and thermal actuators. Additional outputs designed for use with underfloor heating systems On board the uh8 are two heating time channels, each zone allows you to specify which time.

Heatmiser underfloor heating wiring diagram. An ideal solution for larger underfloor heating systems the heatmiser uh8 8 zone wiring centre offers connections for up to eight thermostats for separate control of 8 rooms. The uh8 can be used to control any actuator or valve which requires a 230v ac signal. This can refer to any ufh thermostat.

The uh4 can be used to control any actuator or valve which requires a To save you too much headache, have a look at this page. Drill at the marked positions and insert a wall plug in to each hole. On demand from any zone a 230v output is provided to switch the relevant zone actuators.

For advice or questions you can speak to one of our helpful team on 0800. On demand from any zone a 230v output is provided to switch the relevant zone actuators. The warranty does not cover damage from improper wiring or installation. 8 way underfloor heating wiring centre.

This can refer to any ufh thermostat. The uh8 is our v 8 zone wiring centre for underfloor heating systems. Note, the boiler pump will usually be controlled from the boiler itself as it will have to run on after the boiler call has gone off. It accommodates up to 8 thermostats and a hot water timer.
